Product Introduction：

The vacuum welding space arm is composed of six parts: column, rotating cantilever, drive balance system, wire feeder bracket, high-temperature resistant vacuum hose, universal vacuum hose, using high-strength carbon steel welding structure, stable and durable, wire feeding bracket section carrying 80kg, can be long-term heavy-duty operation. The wire feeder arm supports horizontal 320° rotation, up and down pitch adjustment, and the arm length can be selected from 2.5–6 meters, with a large coverage radius, which can be flexibly adapted to both high-altitude and narrow stations, without the need to move the welder frequently. Integrated hydraulic balancing device, smooth start and stop, hover at any angle, easy control by workers, greatly reduce high-intensity actions such as bending over and raising hands. With the high negative pressure vacuum suction system, the vacuum cover is close to the welding joint, directly captures the welding smoke, has high purification efficiency, and improves the air environment of the workshop. At the same time, the wire feeder, welding cable, and gas pipe are integrated into the cantilever, and there are no messy pipelines on the ground, avoiding trampling wear and safety risks, and complying with the workshop 5S management standards. Suitable for various types of welding machines such as CO₂/MIG/MAG, the installation method can be selected as column flooring, wall (steel beam) wall mounting, and the welding boom can be customized according to the workshop layout to meet the needs of different welding conditions.

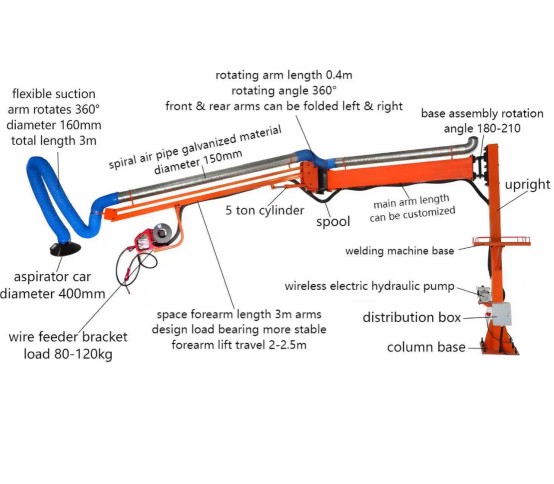

Parameter diagram:

Parameter table：

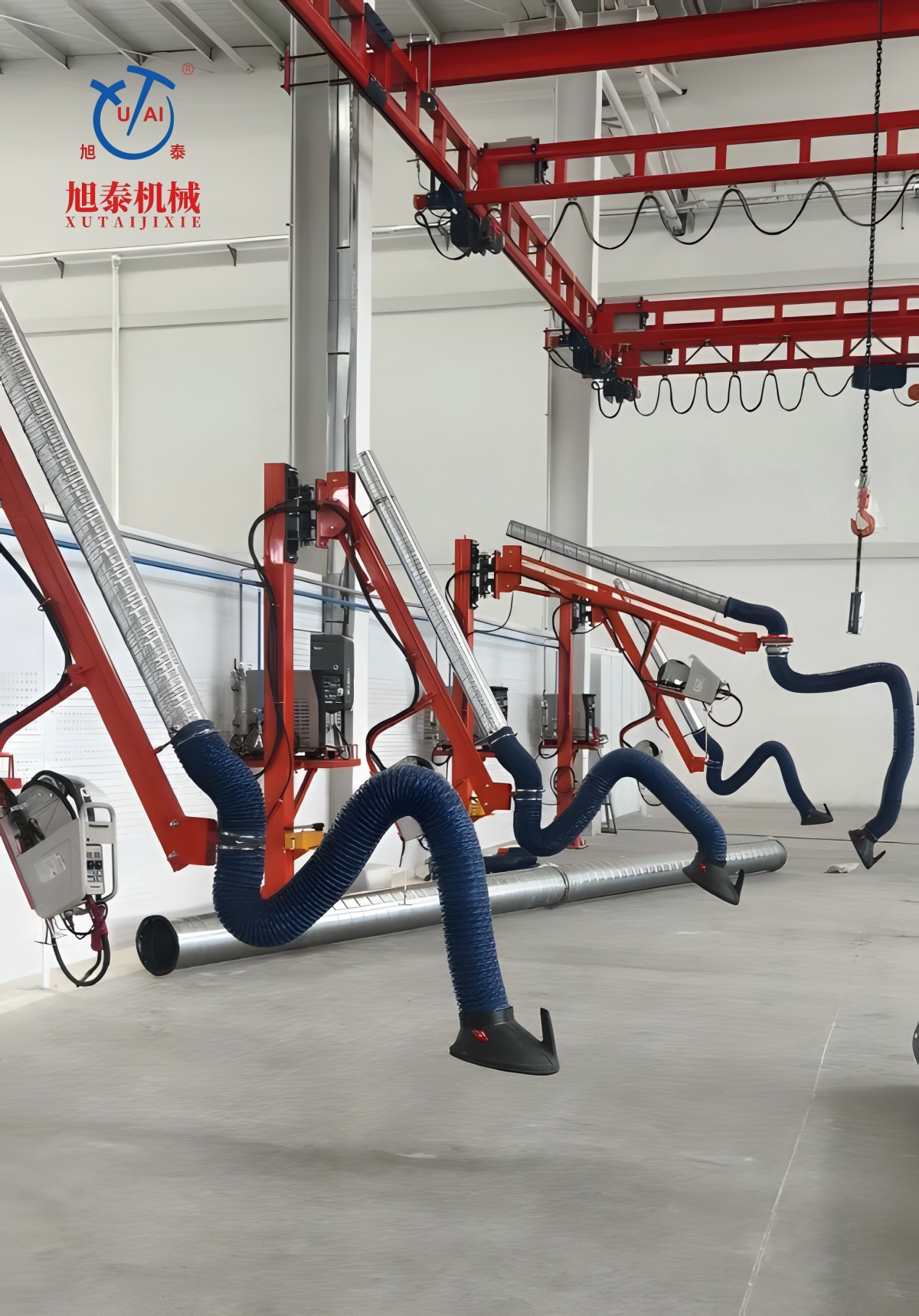

Casediagram:

Q&A：

Q: What is the main use of vacuum welding space arms?

A: Flexible wire feeding, assisting the source to absorb welding fumes, reduce labor intensity, organize workshop cables, and purify the workshop environment.

Q: How far can the cantilever rotate?

A: The welding arm rotates 320° horizontally, can be adjusted up and down, and can hover at any position.

Q: What are the general specifications of arm length?

A: Regular 2.5–6 meters, longer arm length can be customized according to workshop size.

Q: How is the dust removal effect?

A: The source of the solder joint is vacuumed, and the purification efficiency of the integrated vacuum cabinet is high, and there is no obvious welding smoke in the workshop, and the environmental protection meets the standard.

Q: Which welding machines can it be used with?

A: It is suitable for common welding machines at home and abroad, such as CO₂, MIG, and MAG, and is highly versatile.

Q: Is the installation complicated? How many mounting options are there?

A: The installation is simple, and there are three ways to choose from flooring, wall mounting, and track moving.

Q: Is it troublesome to maintain daily?

A: Simple maintenance, just check the wiring, hydraulic system, and vacuum hose regularly.
