Product Introduction:

●Working Height:

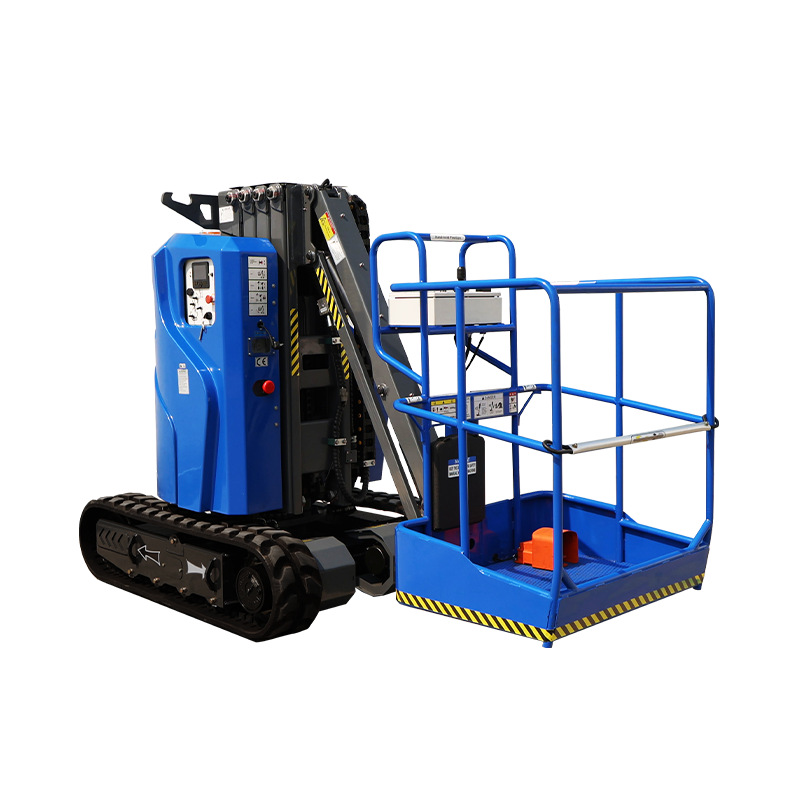

XUTAI-801 tracked vertical mast lift has a working height of 6-12 meters, and custom processing is supported.

●Emergency Stop/Lowering Device:

In case of emergencies, all equipment operations can be stopped, enhancing emergency performance and ensuring operator safety.

●Power Source:

XUTAI-801 tracked vertical mast lift is powered by a battery. Charging time is generally 8-10 hours, and a full charge provides approximately 8 hours of use, fully meeting operational needs.

●Quality Assurance:

Our products undergo rigorous inspection before shipment, ensuring your peace of mind when purchasing and using them.

●Dual Control Platform:

Dual operation ensures safe operation. It comes standard with an upper controller and a lower control panel, facilitating convenient and efficient lifting and lowering for operators.

Parameter Table:

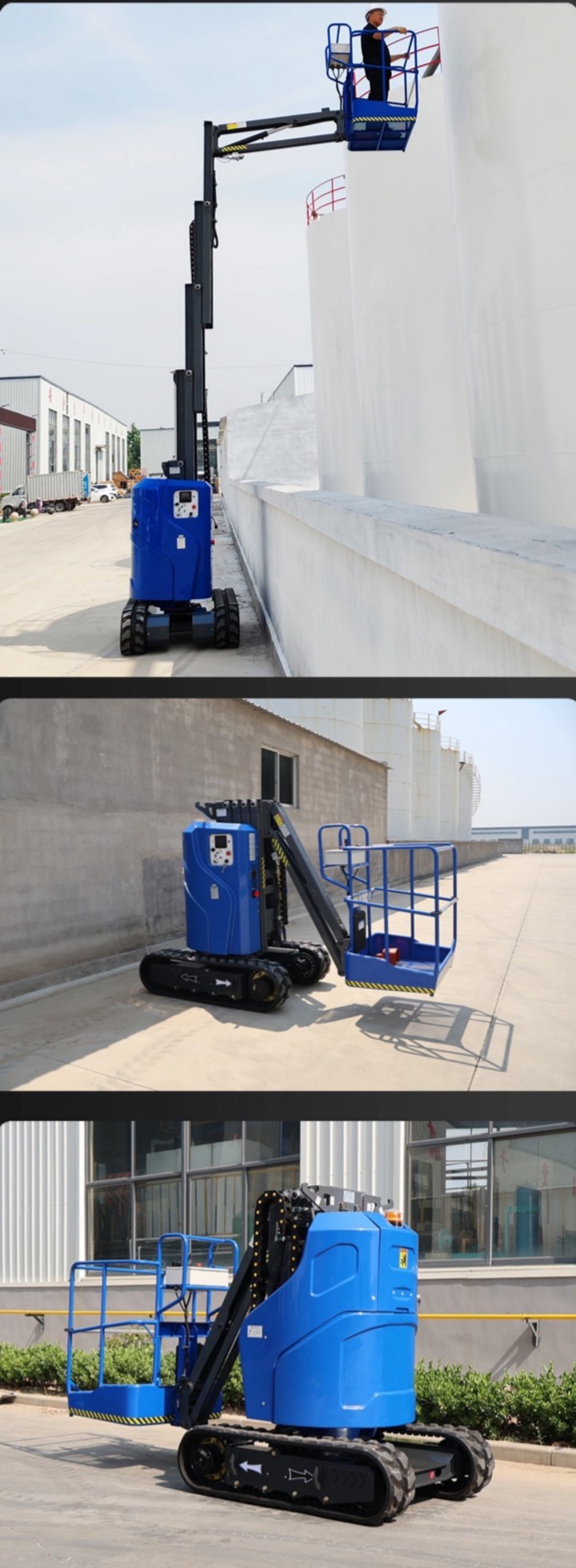

Actual case diagram:

Q&A:

• Q: How long does the battery typically last?

A: A fully charged battery typically lasts for one working day (8 hours).

• Q: Common reasons why the machine cannot be lifted and how to handle them?

A: Overload → Unload; Insufficient voltage → Charge/Replace battery; Insufficient hydraulic oil → Add oil; Incorrect overflow valve pressure → Adjust; Internal leakage in cylinder → Repair and replace.

• Q: What to do if the platform descent fails?

A: Manually release pressure and lower using the emergency descent valve; check the lower limit switch, descent contactor, and control circuit, and troubleshoot before use.

• Q: How to solve excessive vibration during equipment operation?

A: Check the mast guide wheel clearance, roller bolts, and guide rail lubrication; correct the track level with the chassis, and remove any obstructions.

• Q: What parameters should be considered when purchasing equipment?

A: Working height, load capacity, machine dimensions (can it fit into an elevator/doorway), power type, ground pressure, track material, safety configuration, and after-sales warranty.

• Q: Precautions for storing and transporting equipment?

A: Store in a dry and ventilated place, avoiding exposure to sunlight and rain; during transportation, lower the platform, disconnect the power, and secure it; protect the tracks to prevent shaking and impact.
