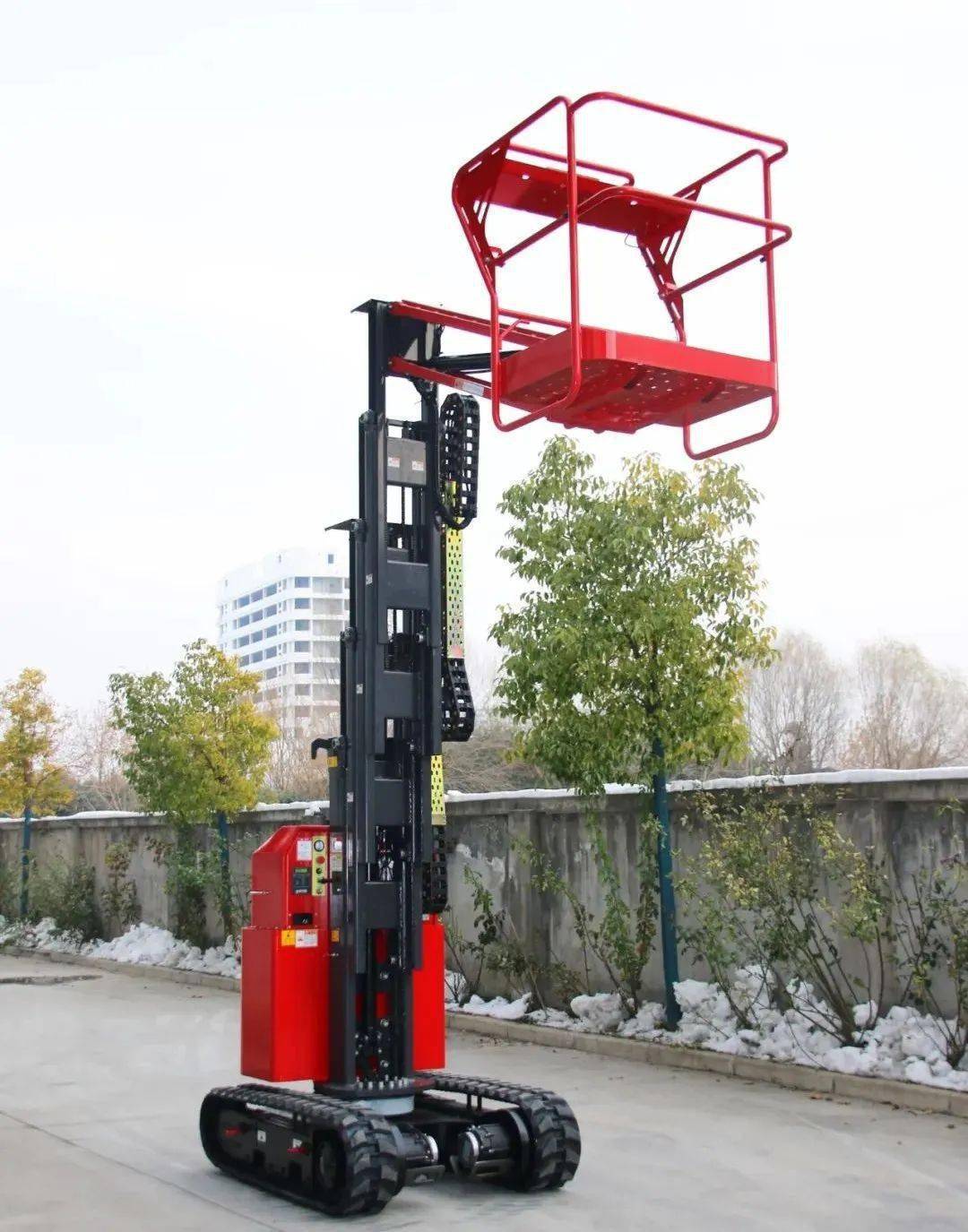

Product Introduction

1. Structure and principle

Main structure: Single-mast, double-masted or multi-mast overlay high-strength aluminum alloy mast, which has strong rigidity, light weight, good torsional resistance, and can achieve vertical and smooth lifting and small space.

Lifting system: using motor + hydraulic drive combination, the lifting speed is stable, there is no sense of frustration, equipped with a manual emergency descent device, and the emergency situation can be quickly and safely landed.

Walking chassis: Adopts crawler design, the track material is wear-resistant, non-slip, and has a large contact area, which can effectively disperse the weight of the fuselage, avoid falling into soft ground, and support manual pushing or electric self-walking, and flexible steering.

Working platform: non-slip and wear-resistant manned countertop, equipped with fully enclosed safety guardrails and safety doors to prevent personnel from falling, and the countertop can be slightly rotated (some models), which is convenient for operators to adjust the operating angle and adapt to different operation needs.

2. Main features

Strong site adaptability: The tracked chassis is not afraid of mud, gravel, and rough roads, and can move freely in complex outdoor venues, solving the problem that tire-type models are easy to slip and trap on soft ground.

Safe and reliable: standard overload protection, tilt alarm (automatic shutdown of ultra-safe inclination), limit switch, emergency descent device, guardrail safety door linkage lifting, all-round protection of operator safety.

Flexible and efficient: the body is compact, the turning radius is small, it can pass in narrow fields, the lifting and lifting are smooth and fast, the operation is simple, no professional installation is required, it can be used when it is powered on, and the transition is convenient.

Durable and easy to maintain: aluminum alloy mast is corrosion-resistant, anti-aging, wear-resistant and anti-manufacturing, daily maintenance only needs to regularly check hydraulic oil, battery, track tightness and lines, low maintenance cost.

Parameter Table:

Case diagram：

Q&A:

Q1: Crawler or rubber mounted mast lift, which is better for outdoor muddy sites?

A: Definitely crawler. The track has a large contact area, anti-slip and wear-resistant, which can effectively avoid falling into muddy and gravel ground, while the tire type is easy to slip and trap on soft ground, and the crawler type is preferred for outdoor complex sites.

Q2: Can this machine work outdoors in rainy weather? Is it safe?

A: Support light rainy day operation (avoid heavy rain, thunder and lightning weather), the key electrical components of the fuselage are waterproof, and are equipped with tilt alarm and emergency descent device, as long as you operate within the safe inclination angle, you can ensure safety.

Q3: How high can it be raised at most? How many people can stand at a time?

A: The conventional maximum working height is 18m, and the common model is 6-15m; The rated load is 150kg, suitable for 1 person to work with tools, and some models can work with 200kg for two people (depending on the model).

Q4: Is the crawler type easy to move? Need to transfer with the help of other devices?

A: Very convenient. The electric self-propelled model can move directly and autonomously, the manual model can be implemented by manpower, and the crawler steering is flexible, without the assistance of forklifts and trailers, and the short-distance transition can be moved directly, and the long-distance can be transported with the help of trucks.

Q5: Is the operation complicated? Can ordinary people get started quickly?

A: The operation is very simple, equipped with a clear operation panel, lifting, walking, stopping one-key control, no need for complex training, ordinary people can get started in 10-15 minutes familiarity, it is recommended to understand the basic safety specifications before taking up the post.

Q6: Is it troublesome to maintain daily? What areas need to be checked frequently?

A: No trouble, daily maintenance is simple. There are three main checks: first, whether the hydraulic oil is sufficient and whether there is any leakage; second, the tightness of the track to avoid loosening; The third is the battery (electric model) power and circuit, and the chain can be lubricated regularly.

Q7: What specific scenarios is it suitable for? Can it be used indoors?

A: It is mainly suitable for complex outdoor scenarios, such as construction site maintenance, mining equipment maintenance, outdoor venue cleaning, field operations, muddy site installation, etc.; It can also be used indoors, but the tracks may be slightly worn on the smooth ground, so it is recommended to give preference to the tire type for indoor leveling sites.
