Product Introduction：

The jib crane is "light, efficient, and adaptable" as its core characteristics, mainly composed of columns, cantilevers, slewing drive devices and lifting mechanisms (electric hoists or chain hoists), according to the installation methods and structural differences, it is mainly divided into 2 categories, and various products are suitable for different scenarios, as follows:

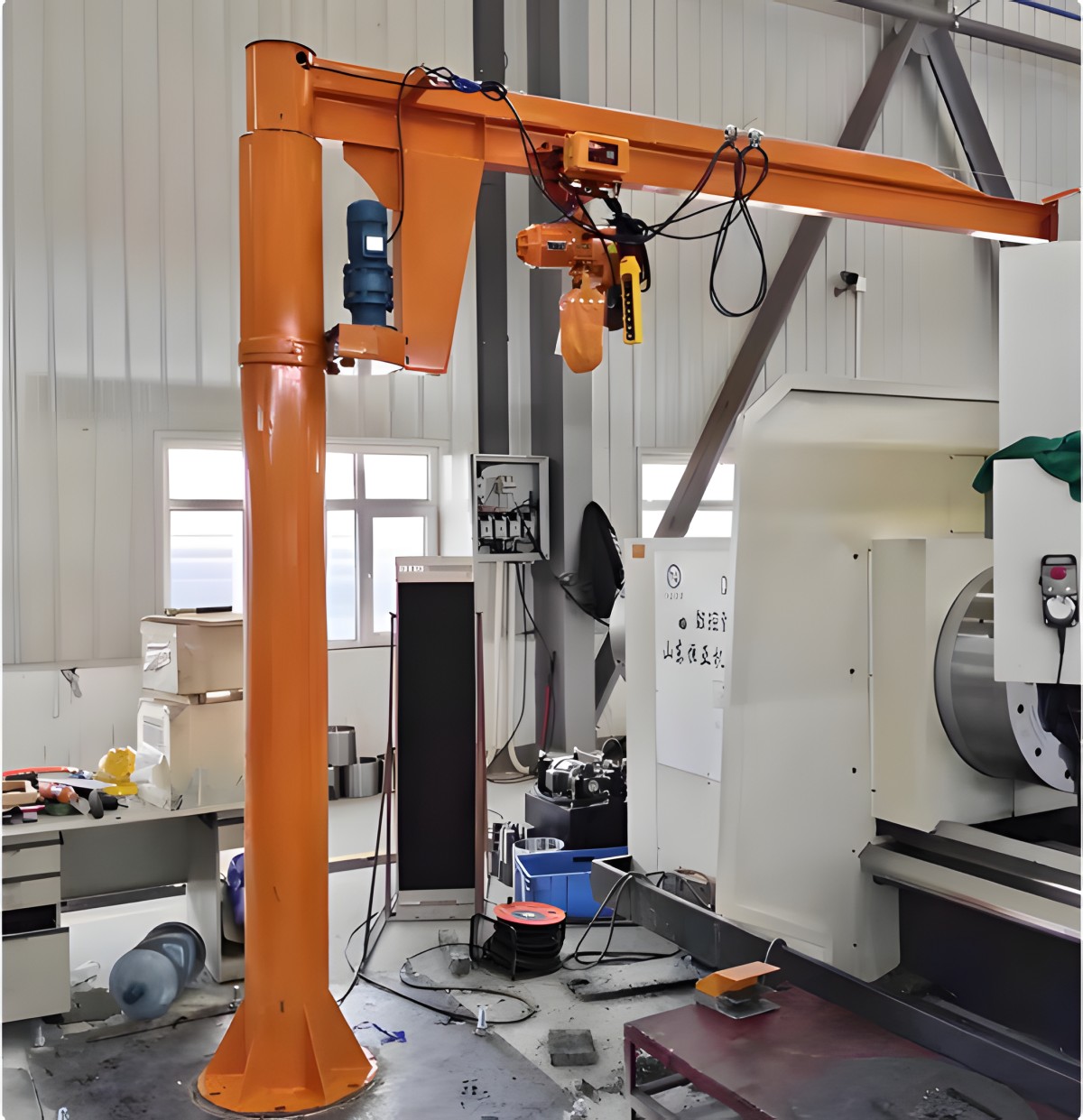

1. Column type cantilever crane: the most basic and widely used type, the column is fixed on the concrete foundation by anchor bolts, the cantilever can rotate 360° around the column, accurate positioning, strong stability, suitable for fixed-point, high-frequency lifting operations, such as the material lifting of specific stations in the workshop, the application of the Yangtze River Delta machining workshop accounts for a high proportion.

2. Wall cantilever crane: fixed installed on the wall, relying on the wall to bear the pressure, compact structure, does not occupy floor space, the cantilever can rotate 180°-220°, suitable for narrow workshop corners, small warehouses and other scenarios, can make full use of wall space.

Overall Benefits:

1. Convenient operation: support electric remote control operation, new workers can master it in a short time, and one person can complete the lifting operation;

2. Cost-effective: no need for large bridges, low installation cost, low energy consumption, and low maintenance costs for long-term use;

3. Wide adaptability: load range 0.125-5t, cantilever length can be customized, and can be flexibly selected according to the operation scenario;

4. Safe and reliable: The core components comply with the national crane design specifications, and some models are equipped with overload protection and limiting devices to ensure operational safety.

Parameter diagram:

Case diagram:

Q&A:

Q: In what scenarios are cantilever cranes mainly used?

A: It is mainly used for small-scale, high-frequency heavy lifting, such as loading and unloading machine tools in workshops, loading and unloading goods in warehouses, and hoisting for equipment maintenance.

Q: What are the common types of light-duty cantilever cranes?

A: Common types include column type and wall type.

Q: Can a cantilever crane rotate?

A: Yes, the column type can rotate 360°, while the wall type can usually rotate 180°-220°.

Q: Is a cantilever crane easy to operate?

A: Electric remote control, simple and labor-saving.

Q: Do I need a professional qualification to operate a cantilever crane?

A: Light-duty cantilever cranes do not require an operating permit; simple training is

sufficient for the company.

Q: Can a column-mounted cantilever crane be moved freely?

A: No.

Q: Does a cantilever crane require routine maintenance?

A: Yes, it is necessary to clean the track regularly, check the wire rope and lubrication components to prevent malfunctions.
