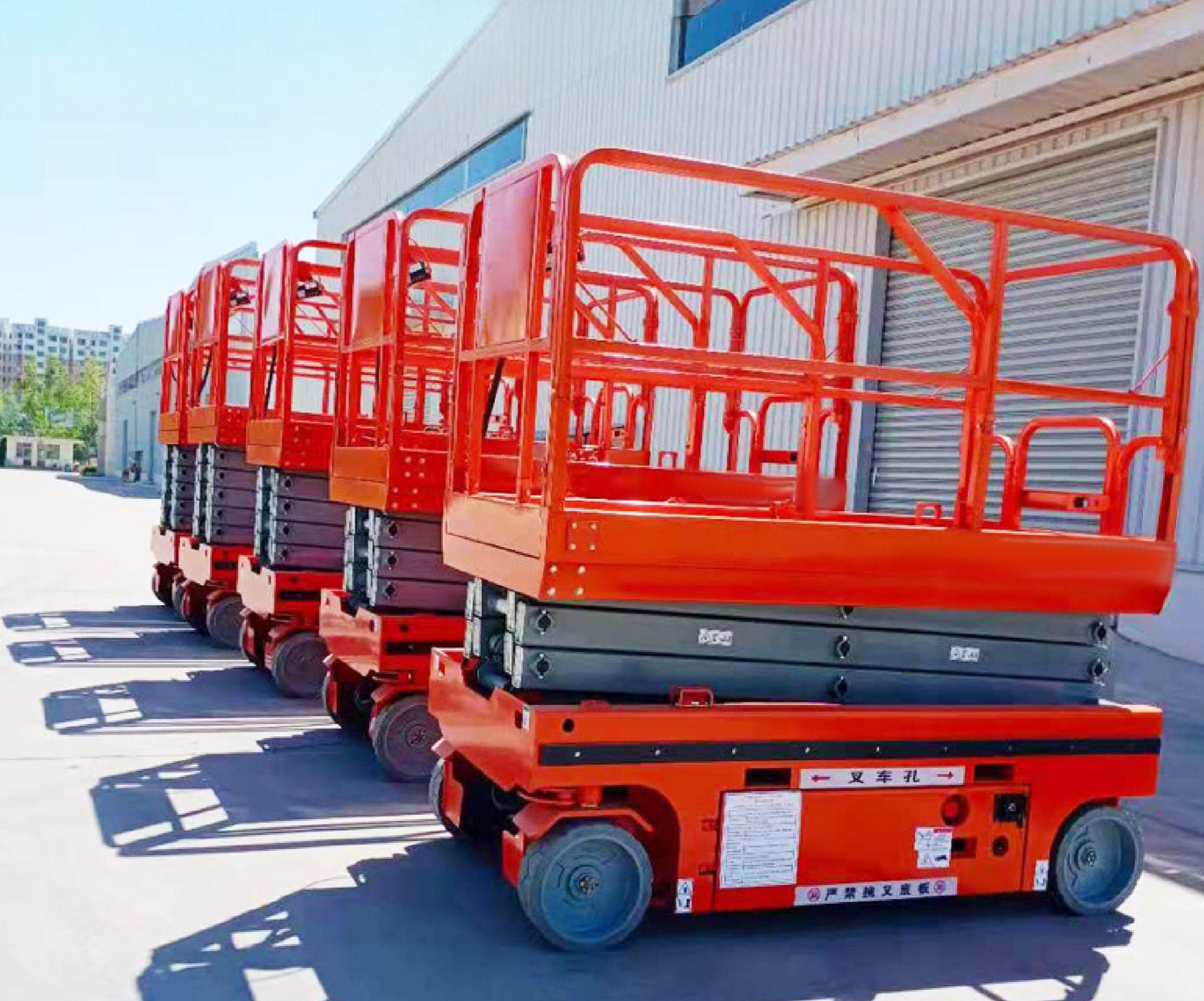

Xutai 5m 6m scissor lift for indoor and outdoor aerial work customizable , safe and efficient.

Xutai 5m 6m scissor lift for indoor and outdoor aerial work customizable , safe and efficient.

Xutai scissor lifts are electrically driven, offering smooth lifting and lifting with a rated load capacity of 200–250kg. The entire machine has a robust structure, is simple and intuitive to operate, and features integrated control for self-movement, steering, and lifting. It is widely suitable for factory maintenance, property maintenance, warehousing, loading and unloading, and other scenarios.
Tel:+8618354823276
WhatsApp:+86 18254885666
Email:weldingboom@xutaijixie.com
Contact Us
Xutai 5m 6m scissor lift for indoor and outdoor aerial work customizable , safe and efficient.
Product Description

Non-marking tyres to protect the floor

Maintenance-free battery

1.15 × 0.6 m platform for stable loading

Non-marking type

Parameter table:


ModelXT Scissor lift
Loading Capacity240kg
Max. Platform Height4m
Occupants1
Platform Dimension1.15×0.6m
Overall Length1.32m
Overall Width0.76m
Overall Height1.92m
Platform Extension 0.55m
Extension Load100kg
Up/Down Speed34/25sec
Turning Radius0
Maximum Slope1.5°/2°
Drive Tyres230x80mm
Gradeability25%
Wheel Base1.0m
Travel Speed(Stowed)4km/h
Travel Speed(Raised)0.5km/h
Battery2×12v/100Ah
Lifting Motor24v/1.3kw
Drive Motors2×24v/0.4kw
Charger24v/15A
Weight660kg


Scene diagram:


crawler scissor lift


Q&A:


Q: Can the equipment move on its own?

A: Yes, it supports electric self-propelled movement, which can be operated and moved by one person without pushing or pulling.

Q: What are the main safety features of the XUTAI Electric scissor lift ?

A: It is equipped with emergency stop, emergency descent, overload protection, tilt protection, guardrails, and an anti-slip platform.

Q: How long is its service life?

A: It uses thickened steel and high-quality hydraulic components, resulting in a durable structure, low failure rate, and long service life.

Q: Is daily maintenance troublesome?

A: Maintenance is simple, mainly involving checking the battery, hydraulic oil, lubrication, and fasteners. Maintenance costs are low.

Q: Why choose the XUTAI model?

A: It is safe and stable, easy to operate, has a long battery life, is versatile, and offers high cost-effectiveness, making it an ideal high-altitude work equipment.













Company Profile

Our company is located in Tai 'an, Shandong Province, China, is a mechanical equipment manufacturer with a history of 10 years. Our company is a production enterprise integrating scientific research and production, successfully developed 16 patents of welding arm with intellectual property patents, more than 10 copyrighted products, our company has independent product trademarks, and passed ISO and CE certification.



We continue to improve according to the feedback of domestic and foreign markets, and now have a full range of multi-model welding boom products. The products are widely used by many countries and well-known enterprises, which greatly improves the on-site management level and product quality of customer enterprises.
