Factory direct supply electric self-propelled working height customizable vertical lifting equipped with safety protection devices scissor lift

Factory direct supply electric self-propelled working height customizable vertical lifting equipped with safety protection devices scissor lift

Xutai electric self-propelled scissor lift is a compact and versatile piece of aerial work equipment that is operated via simple push-button controls, making it more labour-saving. With a small footprint, it can be operated in confined spaces, offering greater stability and convenience.
Tel:+8618354823276
WhatsApp:+86 18254885666
Email:weldingboom@xutaijixie.com
Contact Us
Factory direct supply electric self-propelled working height customizable vertical lifting equipped with safety protection devices scissor lift
Product Description

Product Introduction:


Safe, stable, and more durable.

The product is equipped with multiple safety devices, including emergency stop, anti-tipping protection, and overload alarm, ensuring safer operation.

Multiple specifications are available to meet different needs.

Offering a variety of platform heights, sizes, and models, platform extensions and control methods can be customized to meet specific needs.

A 25% climbing ability allows for smooth ascent of slopes; the rotating chassis facilitates maintenance.

Fault codes are displayed automatically for easy troubleshooting.


Parameter Table:


ModelXTPT0407
Loading Capacity240kg
Max. Platform Height4m
Occupants1
Platform Dimension1.15×0.6m
Overall Length1.32m
Overall Width0.76m
Overall Height1.92m
Platform Extension 0.55m
Extension Load100kg
Up/Down Speed34/25sec
Turning Radius0
Maximum Slope1.5°/2°
Drive Tyres230x80mm
Gradeability25%
Wheel Base1.0m
Travel Speed(Stowed)4km/h
Travel Speed(Raised)0.5km/h
Battery2×12v/100Ah
Lifting Motor24v/1.3kw
Drive Motors2×24v/0.4kw
Charger24v/15A
Weight660kg

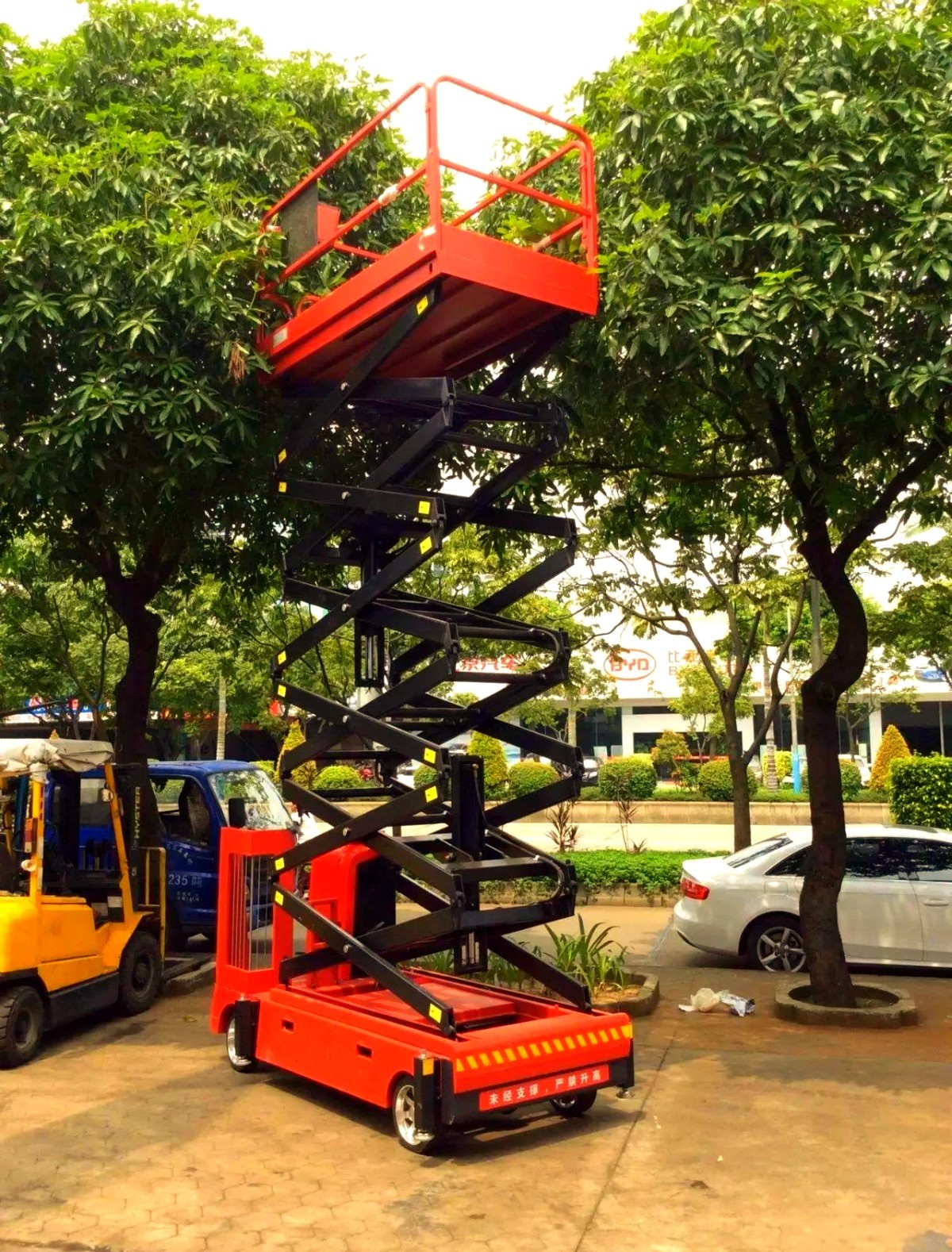

Case diagram:


Factory direct supply electric self-propelled working height customizable vertical lifting equipped with safety protection devices scissor lift


Q&A:


Q: Can the equipment move on its own?

A: Yes, it supports electric self-propelled movement, which can be operated and moved by one person without pushing or pulling.

Q: What are the main safety features of the XUTAI Electric scissor lift ?

A: It is equipped with emergency stop, emergency descent, overload protection, tilt protection, guardrails, and an anti-slip platform.

Q: How long is its service life?

A: It uses thickened steel and high-quality hydraulic components, resulting in a durable structure, low failure rate, and long service life.

Q: Which industries is the equipment suitable for?

A: Factory workshops, warehousing and logistics, property cleaning, shopping malls and stadiums, power installation, decoration engineering, etc.






































Company Profile

Our company is located in Tai 'an, Shandong Province, China, is a mechanical equipment manufacturer with a history of 10 years. Our company is a production enterprise integrating scientific research and production, successfully developed 16 patents of welding arm with intellectual property patents, more than 10 copyrighted products, our company has independent product trademarks, and passed ISO and CE certification.



We continue to improve according to the feedback of domestic and foreign markets, and now have a full range of multi-model welding boom products. The products are widely used by many countries and well-known enterprises, which greatly improves the on-site management level and product quality of customer enterprises.
