Product Introduction:

●Flexible and Efficient Operation:

The cantilever crane offers a wide range of rotation, smooth operation, gentle start-up and stopping, and precise positioning. It is well-suited to workshop conditions involving frequent lifting, assembly and welding, significantly enhancing production efficiency.

●Compact Footprint and High Space Utilisation:

With a compact and streamlined overall design, the crane does not require a large floor area. It can be installed close to workstations, making efficient use of workshop corners and limited spaces, and allowing for more flexible layout planning.

●Versatile Installation Options:

Supports various installation methods, including column-mounted, wall-mounted and mobile configurations. Load capacity, slewing angle and lifting height can all be customised to fully accommodate different factory structures and operational requirements.

●Energy-efficient, durable and easy to maintain:

The all-electric drive system offers low energy consumption, minimal noise and is environmentally friendly; the unit is constructed from robust materials with a sturdy, wear-resistant structure, resulting in a low failure rate. Routine maintenance is straightforward, ensuring lower long-term operating costs.

Parameter Table:

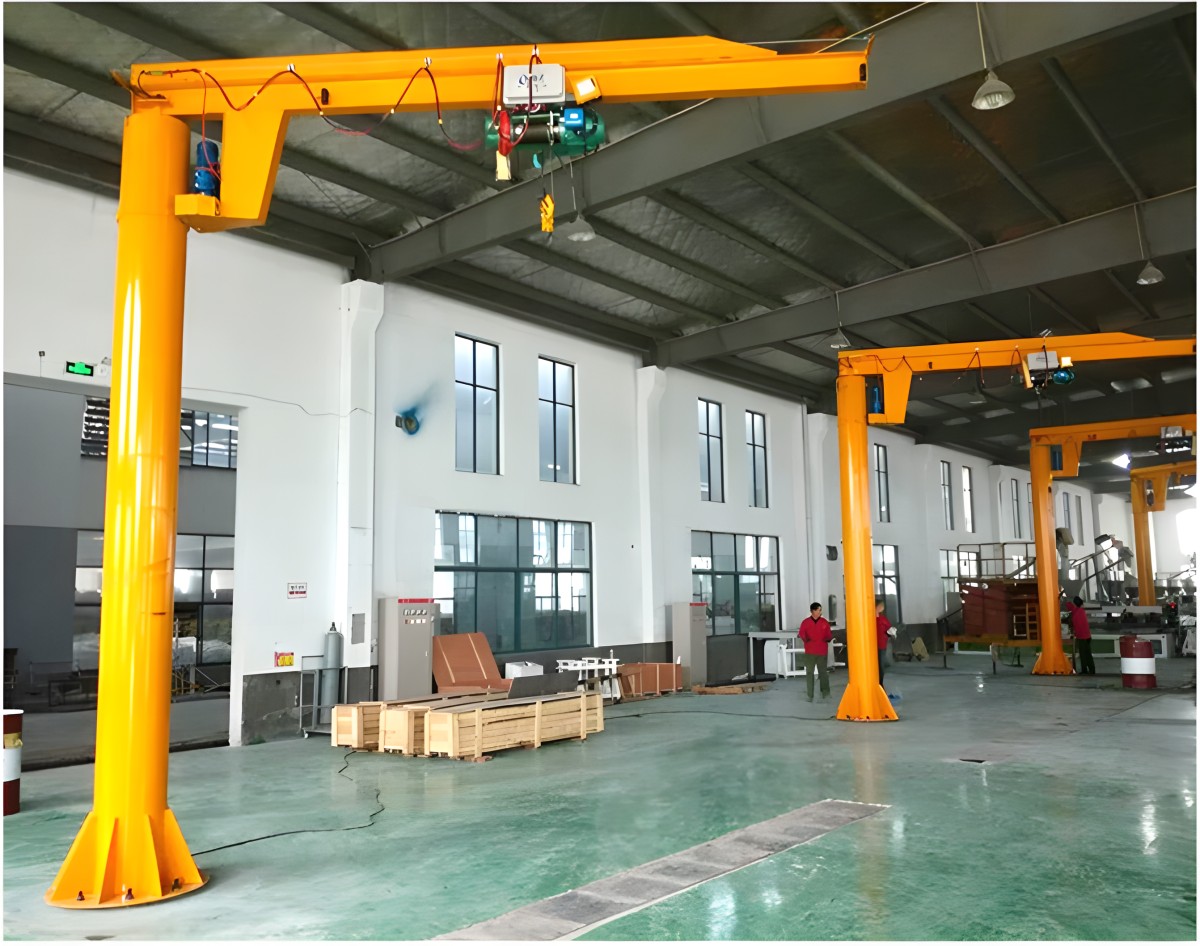

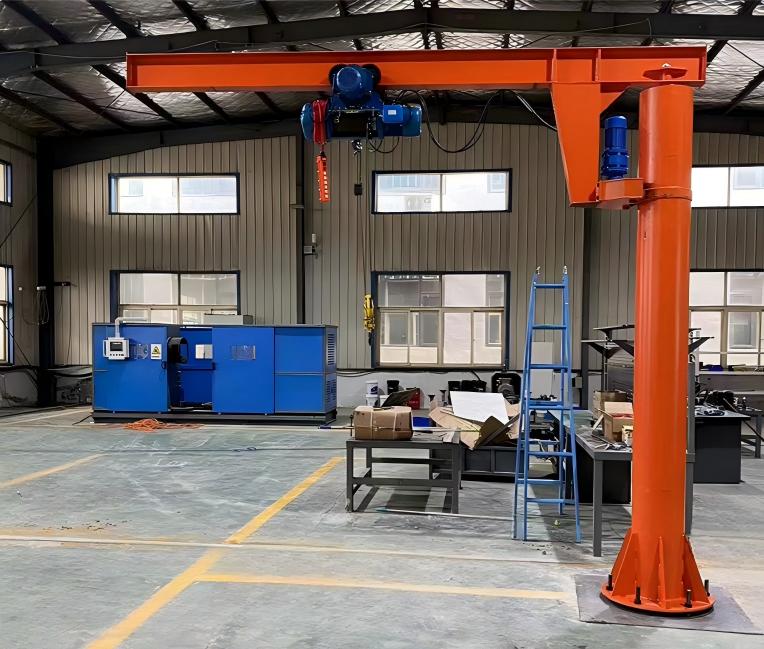

Scene diagram:

Q&A:

●Q: Is installation complicated? How long does it take to install?

A: The structure is simple and modular, requiring no factory renovations and not affecting production.

●Q: Is operation difficult?

A: Button/remote control operation is simple and easy to learn; you can master it in minutes.

●Q: What is the maximum rotation angle? Will it collide with equipment?

A: Column-mounted cranes commonly use 270°/360° angles, while wall-mounted cranes use 180° angles; limit switches can be added to set a safe angle and prevent collisions.

●Q: What safety protections does a cantilever crane have?

A: Standard features include lifting limit switches, overload protection, and an emergency stop button. Optional features include anti-collision protection, pressure loss protection, and overload alarms, providing comprehensive protection for personnel and equipment.

●Q: Can a cantilever crane be remotely operated?

A: Yes, it supports electric remote control. Long-distance operation is safer and more flexible, allowing a single person to complete the lifting operation.
