Product Introduction:

■Working Height:

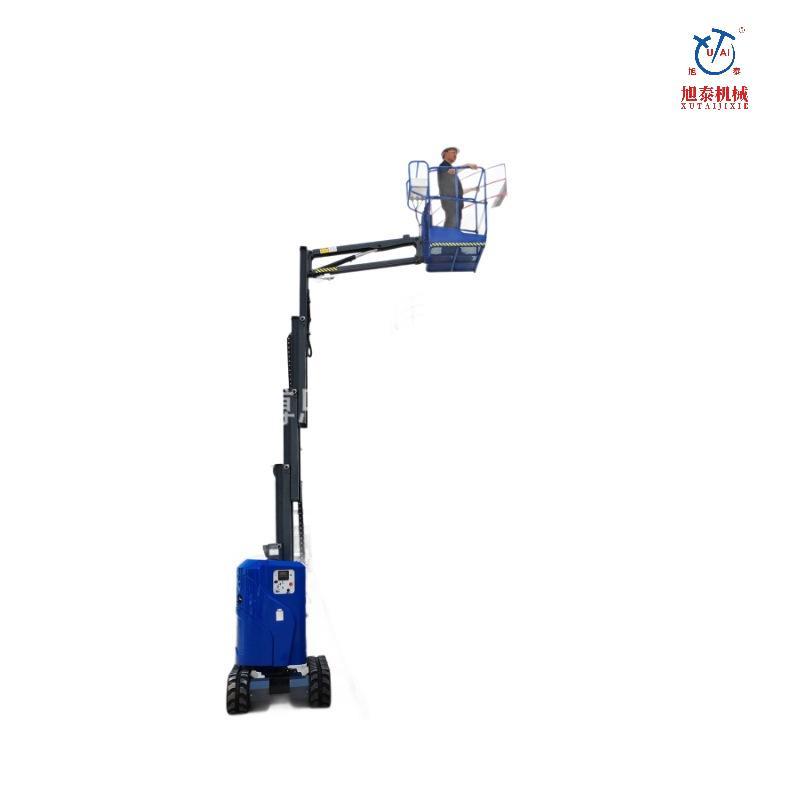

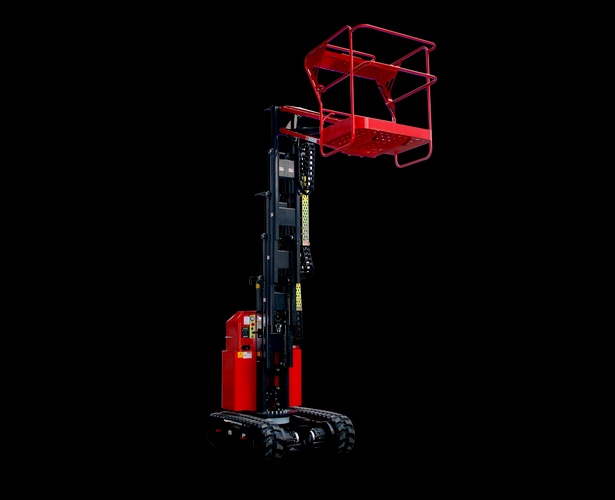

XUTAI-701 tracked vertical mast lift has a working height of 6-12 meters, and custom processing is supported.

■Dual Control Platform:

Dual operation ensures safe operation. It comes standard with an upper controller and a lower control panel, facilitating convenient and efficient lifting and lowering for operators.

■Emergency Stop/Lowering Device:

In case of emergencies, all equipment operations can be stopped, enhancing emergency performance and ensuring operator safety.

■Power Source:

XUTAI-701 tracked vertical mast lift is powered by a battery. Charging time is generally 8-10 hours, and a full charge provides approximately 8 hours of use, fully meeting operational needs.

■Quality Assurance:

Our products undergo rigorous inspection before shipment, ensuring your peace of mind when purchasing and using them.

Parameter table:

Case diagram:

Q&A:

• Q: What is a tracked vertical mast lift?

A: A self-propelled aerial work platform with a tracked chassis and a vertical mast as the lifting mechanism, integrating travel, lifting, and operation.

• Q: What are the core structural components of the equipment?

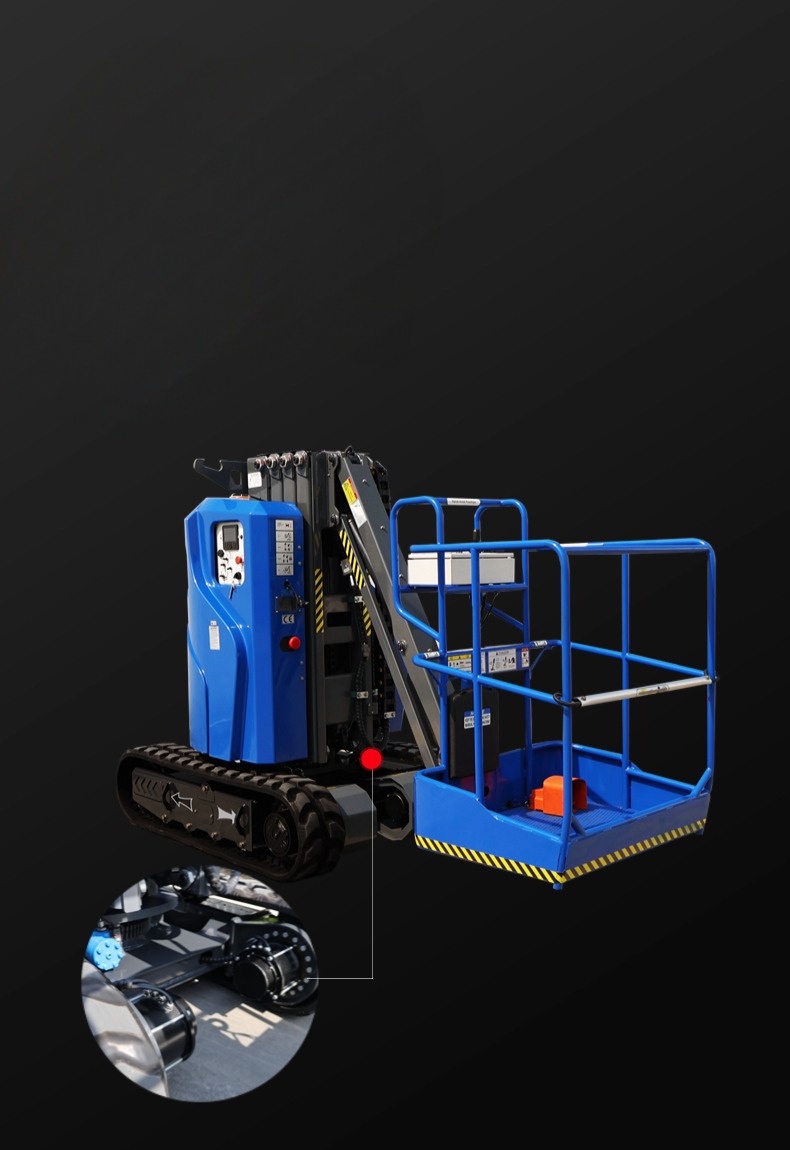

A: It mainly consists of a tracked chassis, a vertical mast assembly, a work platform, an electrical control system, and safety protection devices.

• Q: What are the advantages compared to a tire-mounted mast lift?

A: The tracks have a large ground contact area and low ground pressure, preventing damage to the ground. They offer excellent mobility, traversing muddy, sloping, and uneven terrain; they also offer better stability, making them more suitable for outdoor and harsh working conditions.

• Q: What are the common working heights and load capacities?

A: Common platform heights are 4–10m, working heights are 6–12m, and the rated load capacity is 200kg.

• Q: What are the main power types?

A: Lithium battery electric control, quiet operation with zero emissions, suitable for both indoor and outdoor use.

• Q: What are the suitable operating scenarios for a tracked vertical mast lift?

A: Venue maintenance, property cleaning, equipment installation, low-voltage electrical work, garden pruning, work in confined spaces, warehouses, etc.

• Q: What is the maximum climbing ability?

A: Generally 15°–25°. Lifting operations must be performed on flat, firm ground; lifting on slopes is prohibited.
