Introduction:

●Size:

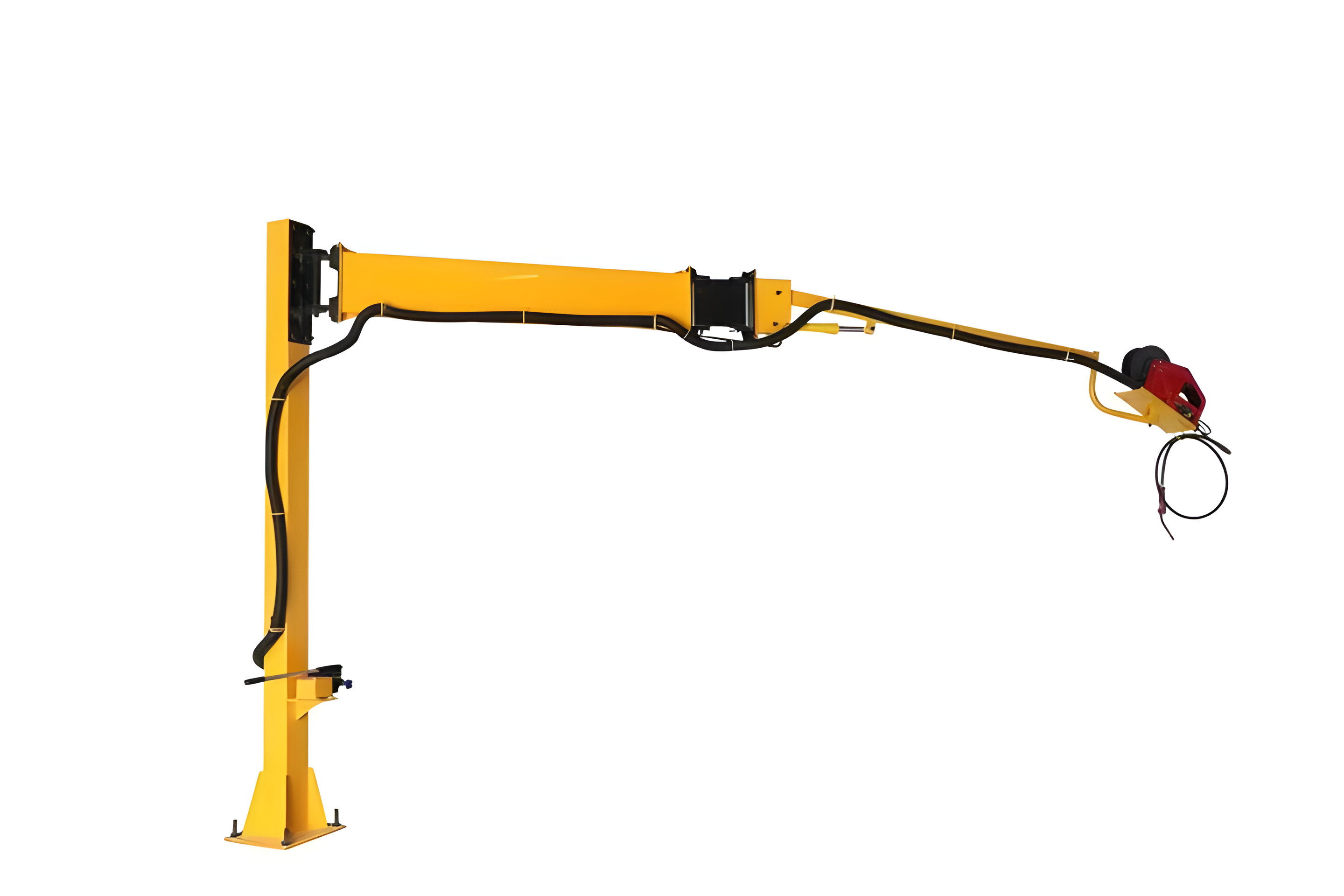

SPH-505 manual hydraulic welding space arm, column height 3 meters, main arm 1.8 meters, forearm 2.7 meters, overall arm length can reach 5 meters, the specific size can be customized according to needs.

●Scope of application:
It can be used in welding stations in steel structure workshops, construction machinery, shipbuilding and automobile manufacturing and other welding workshops.

●Drive mode:
The welding space arm adopts manual hydraulic method to adjust the lifting, which is convenient and simple to operate.

●Function:
Support the workpiece turntable, stable and smooth wire feeding, and realize multi-directional welding operations. Support the welding machine welding torch, reduce the load of workers, improve welding efficiency, greatly reduce the safety hazards of the original welding station, and reduce the daily wear and welding cost of welding materials.

●Color:
Support customization, a variety of colors are available, and the overall matching is more in line with customer needs

Parameter diagram:

Parameter Table:

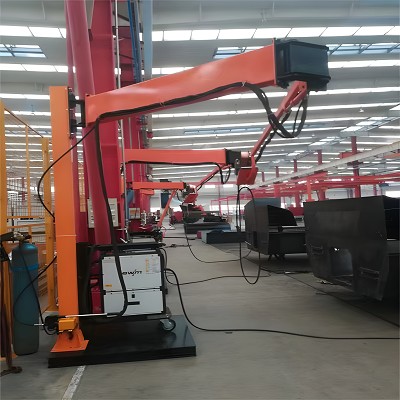

Case diagram:

Q&A:

●Q: What is the role of welding space arm?

A: Reduce the frequency of welding material replacement, reduce the loss, standardize the operation, safe and environmental protection.

●Q: Can the space arm size be customized?

A: Can be customized according to the size requirements

●Q: Can it go up and down?

A: It can be raised and lowered, and the range of up and down can reach 2.5 meters

●Q: Does the space arm take up space?

A：Does not take up space, can be folded storage

●Q: What is the rotation Angle?

A: The length of the rotating arm is 0.4 meters and the rotation Angle is 320°

●Q: What is the load of wire feed bracket?

A:  Load strength 80kg-120kg

●Q: Which industries is it suitable for？

A:  Aerospace industry  Shipbuilding industry  Pressure vessel industry  Construction machinery industry  Rail transit industry  Automotive manufacturing industry  Steel structure industry  Energy equipment industry
